Zero Air

TEXOL: Zero Air

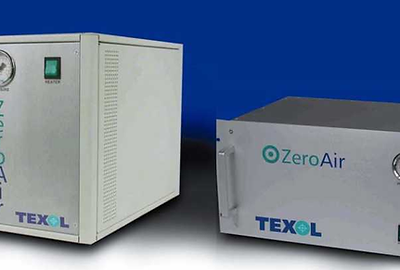

The Zero Air uses new catalyst technology to produce hydrocarbon-free air with minimum power consumption and no moving parts. It is available in dual voltage, in both benchmount and 19" rackmount versions. Simply plug in the Zero Air generator and connect in-line to the application.



The Zero Air range is designed for constant use within laboratories and other applications. They operate by using catalytic combustion of hydrocarbons in a source of compressed air with minimum power consumption and no moving parts.



The range introduces no impedance to the compressed air supply. The models are vailable in both bench-mount and rack-mount versions and can be supplied with or without compressors.

Zero Air, Technical Specifications:

Flow rate (l/min):

1-40



Purity:

Total Hydrocarbon content < 0.1 ppm



Dewpoint:

-10



Pressure (Barg/PSIg):

From 1 / 14.7 to 10 / 147



Start up time(mins):

3



Voltage:

110-230VAC



Height(mm):

303



Width(mm):

9



Depth(mm):

450



Weight(Kg):

9-10

Zero Air, Characteristics:


• Hydrocarbon-free air to <0.1ppm • New catalytic technology


• Low Power consumption


• Space saving


• Modular system


• Flows from 1 I/min to 80 I/min with no flow loss.


• Output Pressure to 147psi (10 Bar).






Typical Applications:


•  GC-NPD


•  GC-FPD


•  GC-FID


•  Emission Analyser

Texol is a brand name of Apex Gas Gen Ltd.
